ACRTC-3

Board Tweaks

On the v1.0 ACRTC-3 board, some tweaks are required to the board:

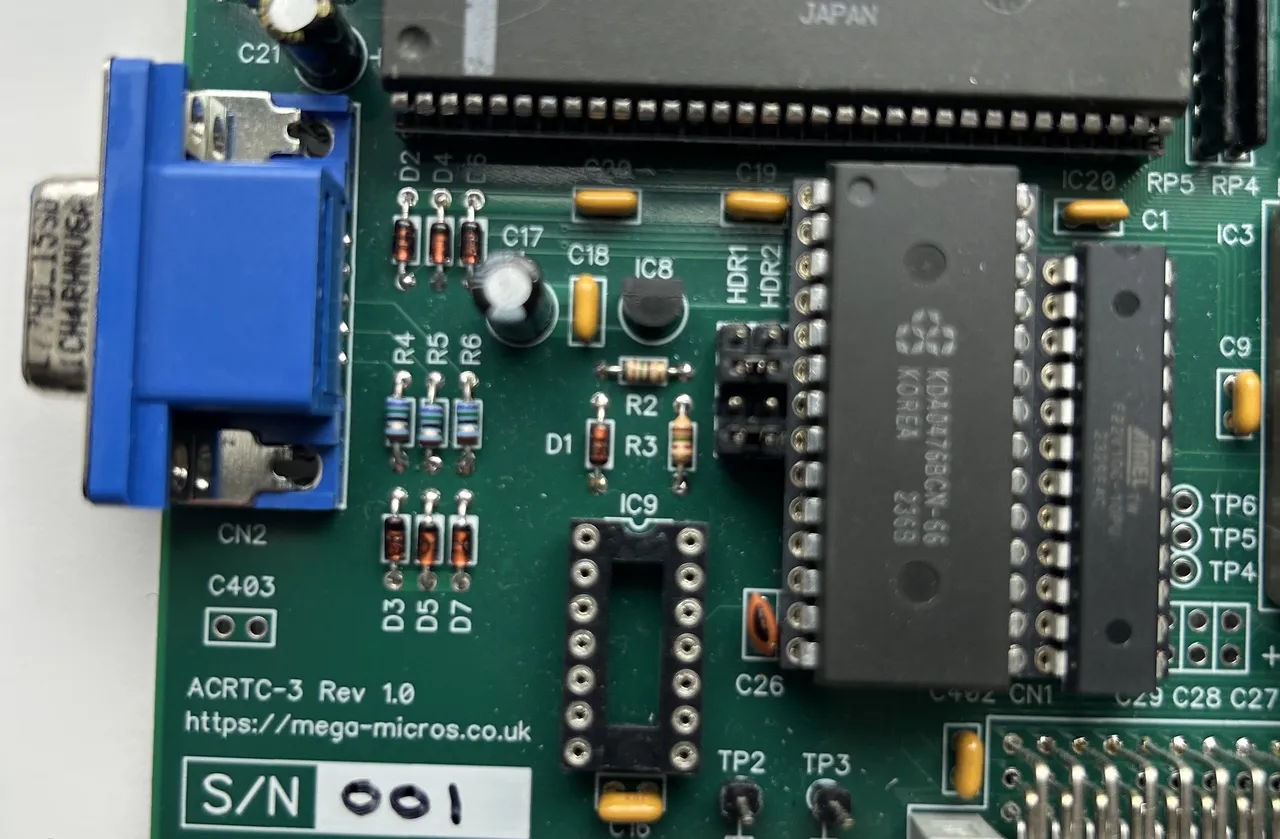

  • Omit IC9 completely and install only two jumpers into the header as shown: image-1789372881976.png

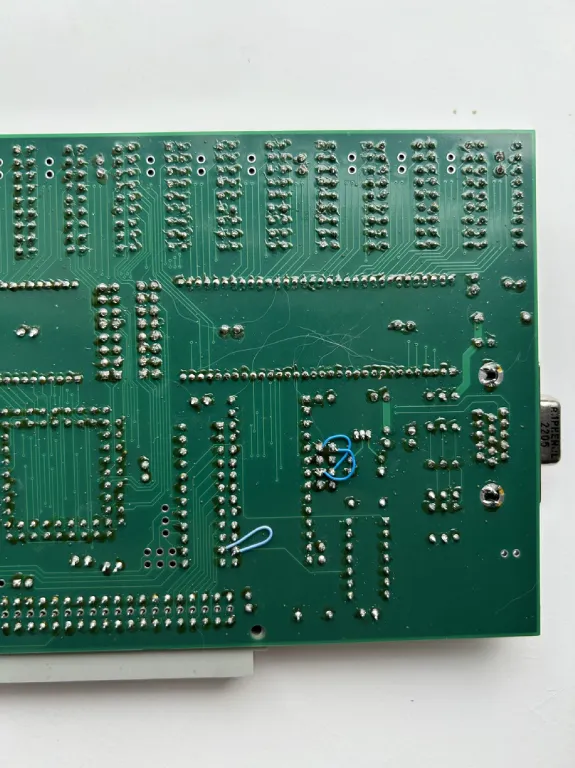

  • Add the three wire links as shown: image-1789372956960.png
